[THEME][N9] TWRP Materialised - Dark / Light / Play

Features

• Recovery gone App: Designed to mimic the look and feel of an Android app.
• Customisable UI: 15 different accent colors, center clock option, different navbar button layouts...
• Added functionality: ability to flash image files (recovery, radio, boot), ability to change the recovery splash screen, bookmark function for file lists, Aroma File Manager support, theme changer...

Availability and Compatibility

• Supported TWRP versions: 280X to 284X.
• Supported screen resolutions: 720x1280, 768x1280, 800x1280, 1080x1920, 1200x1920, 1440x2560, 1536x2048.
• The themes will work on any device with the resolution specified in the filename (e.g. "1080.zip" is for FullHD devices).
• The theme stays compatible with new versions of TWRP until TWRP changelog says otherwise.

About MultiROM Theme

• MultiROM theme requires a MultiROM recovery.
• MultiROM themes are only available for portrait orientation.
• Landscape option is present, but will default back to stock theme.

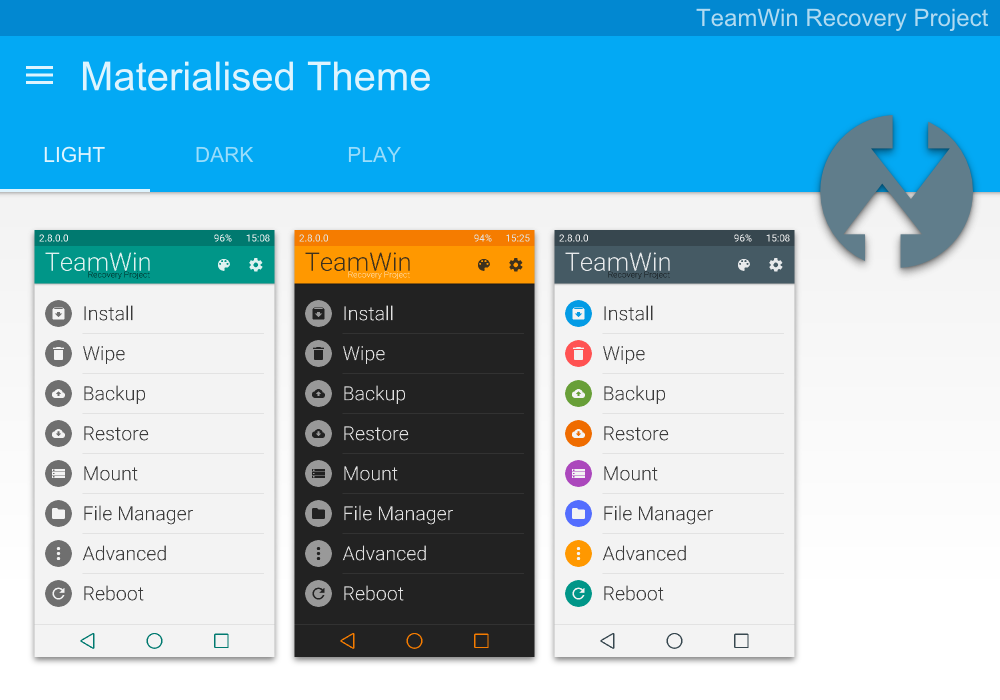

Previews:

Screenshot Gallery

Download:

1536x2048 Themes Folder

Changelog:
Code:
15.01.2015 (284X_v1)

• initial release for flounder

How to...

...install the theme:
The theme zips are not flashable. First installation has to be done manually:

1. Download the theme of your choice and rename it to "ui.zip".
2. On SD card (if device has internal and external storage, use the internal) open TWRP folder and create a folder called "theme", without capital letters.
3. Copy ui.zip to theme folder.
4. Restart to recovery.

...change the theme:

1. In Materialised settings, select CHANGE THEME.
2. Select the theme zip you want to use.
3. Confirm the change.

...remove the theme:

1. In Materialised settings, select the delete icon on the app bar.
2. Confirm the removal.

Alternatively, delete the ui.zip from /sdcard/TWRP/theme with a file explorer.

...change the recovery splash screen
In order to change the splash, one must unpack the recovery image, replace the splash and then repack the image.
This can be done using the Android Image Kitchen by @osm0sis, which is available for Windows, Linux and Android (mobile AIK).
The Materialised theme provides a front end for using the mobile AIK.

General prerequisites:

1. Make sure the splash screen you want to use is in .jpg format and matches your screen resolution (e.g. 1920x1080).
   Splash samples can be found along with the themes in the resolution specific download folders over here.
2. Download a stock TWRP recovery image for your device.
   Samsung users have to download .img files or pull them from the .tar files. Repacking .tar files won't work.

Change the splash while in recovery:

1. Download the AIK-Mobile-Installer.
2. Flash the AIK zip in recovery.
   This will install the required scripts and binaries to \data\local\AIK-mobile.
3. In Materialised settings, select CHANGE SPLASH.
4. Select the stock TWRP .img file.
5. Select the .jpg file you want to use as splash screen.
6. Set options:


   • If Automatically install... is unchecked, the repack will only be created and saved to the same folder as the stock TWRP image.
     If checked, the repacked recovery will also be installed on your device.
   • If Include current theme... is checked, the theme in its current state (accent color) will be included in the repack, replacing the stock TWRP ui.
     The ui.zip will automatically be deleted from /sdcard/TWRP/theme, as it is no longer required.
     Be aware that changing the accent color won't be possible with an integrated theme.
     In general, I'd recommend to not include the theme into the repack. By keeping the ui.zip, there's always the stock ui as a fallback option in case there's something wrong with the theme.
7. Start repacking/flashing with a swipe.
   During the process, Repacking in progress... will be shown.

Change the splash on a Windows PC:

1. Download and unpack Android Image Kitchen Win32.
2. Copy the stock TWRP .img file to the Image Kitchen folder.
3. In windows explorer, drag & drop the recovery image on the "unpackimg.bat".
   Unpacking will create two new folders (ramdisk and split_image).
4. Rename the splash of your choice to "curtain.jpg" and drop it into /ramdisk/res/images.
5. Hit "repackimg.bat".
   This will create a "image-new.img", which you can then flash away using your preferred method.

...install image files while in recovery:
The theme currently utilises the Flashify script by @osm0sis to install boot, radio and recovery images.
The script comes with the theme and will automatically be installed to /sdcard/TWRP/flashify if required.

1. On the Install page, tap on Install Zip.
2. Select Install Image.
3. Select the .img file you want to flash.
4. Select the image type.
   This selection determines the target partition. Make sure not to flash a radio.img to the boot partition...
5. Start flashing with a swipe.

...use the AROMA File Manager:
AROMA File Manager is not part of the theme.
The theme just contains a "shortcut" for directly starting AROMA FM, rather than going through the "install > flash zip" procedure.

1. Download this flashable zip.
2. Flash the zip in recovery.
   This will copy the Aroma FM package to \TWRP\aromafm.
3. In Materialised settings, tick the option to use Aroma FM.
   From the main menu, the theme will now start Aroma FM instead of the TWRP file manager.

...resolve common issues
When I reboot to recovery, the theme isn't applied. Any ideas?
This is most likeley due to wrong naming of the theme folder or the ui.zip.
Make sure the folder is named "theme", without capital letters.
Also check if you accidentally renamed the downloaded zip to "ui.zip.zip" (common pitfall when renaming the zip in windows explorer).

When I reboot to recovery, I get a "recovery bootloop". Is my phone broken?
Nope, this is most likeley due to a bad download.
Please download the theme again using another browser or app.

AROMA File Manager

All themes updated for TWRP 2850:

• changed the script used to change the splash screen to work with new recovery file structure
• added "cancel backup" button
• during backups, the file progress is now shown on the appbar (next to the partition that is currently beeing backed up, as it's a partition specific value)

Do not use the 285X themes on a 284X recovery. This combination will result in a never ending backup process, that can only be interrupted by a hard reboot.

Download from the 285X_v1 folder for your resolution.

EDIT:
I've just been made aware that the toggle to change the font size is broken.
Using it will make the file list disappear, and it'll only come back after a reboot to recovery.

While the code in my theme hasn't changed, something in TWRP has.
So before I'm going to remove the toggle, I'll wait for the TWRP devs to investigate the issue.

So please do not use the font size toggle for now.

Klickt mal THX ... Das ist das mindeste was man für den Dev machen kann!

Zitat

All themes updated for 2860

Changelog:

• corrected positioning and height of headerless lists (due to fixes in the theme engine)
• corrected positioning of confirmation sliders (due to fixes in the theme engine)
• added "disable size check" option to backup page
• added support for monospace ttf in console
• added support for entering a pattern to decrypt the data partition(only accessible if device is encrypted and the theme is integrated into the image)
• added DST rules to time zones for USA and Europe
• ownership of recovery images created during repacking is now set to media_rw:media_rw (should solve the problem of "undeletable" image files)
• changed position of fab (sits closer to the navbar now)

Download from the 286X_v1 folder for your resolution.

Those of you using the Android Image Kitchen to repack recovery images with custom splash screens, also might want to upgrade to the latest AIK version: mobile AIK 1.8
