[THEME][N6] TWRP Materialised - Dark / Light / Play

MuggelPu

Ahoi AP-Gmeinde!

Möchte euch hier ein Material Design TWRP Theme vorstellen!
Mein wirklich absolutes Lieblings TWRP THEME. Es gibt so vieles Positives - Aufgeräumtes Menu und Optisch ansprechender usw.! Seht und überzeugt euch selbst!

Aussehen & Info´s:

Features

"Klick"

Recovery gone App: Designed to mimic the look and feel of an Android app.
Customisable UI: 15 different accent colors, center clock option, different navbar button layouts...
Added functionality: ability to flash image files (recovery, radio, boot), ability to change the recovery splash screen, bookmark function for file lists, Aroma File Manager support, theme changer...

Availability and Compatibility

"Klick"

Supported TWRP versions: 280X to 284X.

Supported screen resolutions: 720x1280, 768x1280, 800x1280, 1080x1920, 1200x1920, 1440x2560, 1536x2048.

The themes will work on any device with the resolution specified in the filename (e.g. "1080.zip" is for FullHD devices).

The theme stays compatible with new versions of TWRP until TWRP changelog says otherwise.

About MultiROM Theme

"Klick"

MultiROM theme requires a MultiROM recovery.

MultiROM themes are only available for portrait orientation.

Landscape option is present, but will default back to stock theme.

Dat ganze dann mal in einfach & Deutsch

Downloaded das Theme eurer Wahl (Achtet bitte auf eure TWRP Versions Nr. / Auflösung & ob Multi etc.)
Kopiert die zip-Datei in den Internen Speicher .../TWRP/theme & nennt sie ui.zip (Falls kein theme Ordner vorhanden - einen erstellen!)
Neustart ins Recovery & freuen! :moustach:
Falls erwünscht - Backup des Themes-> Nennt eurevorhandene/stock ui.zip einfach back.bak

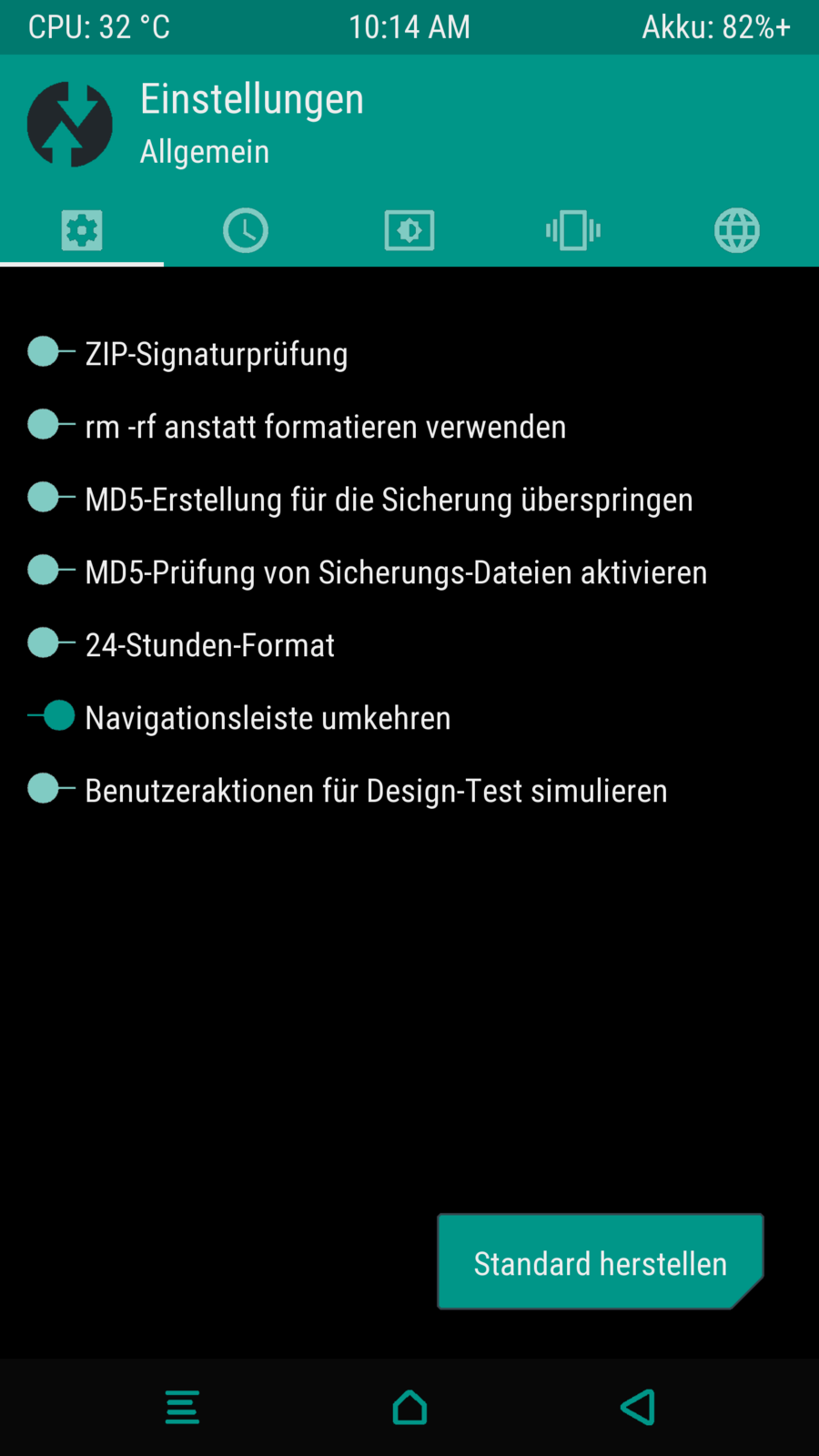

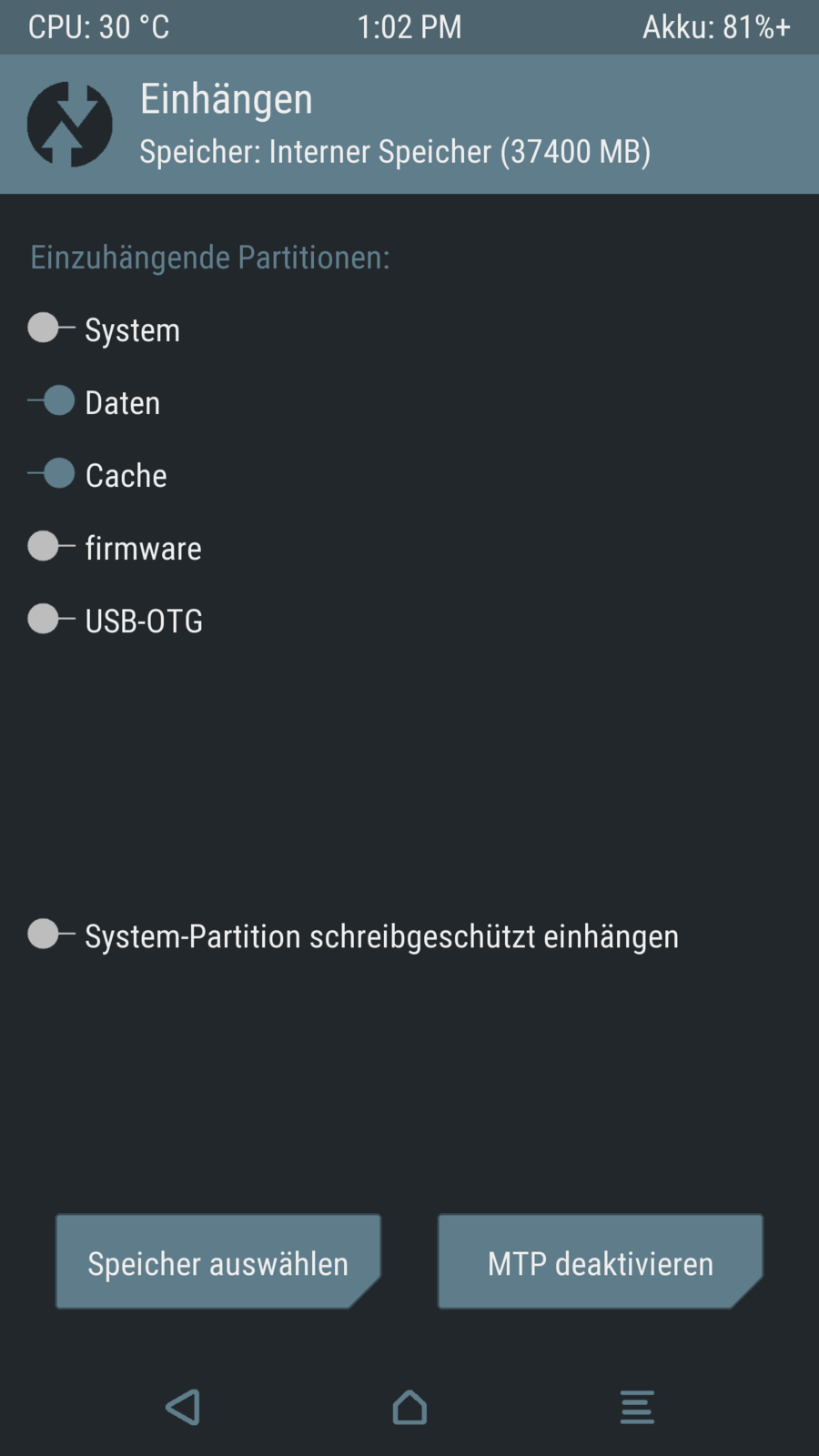

Previews:
Screenshot Gallery

Quelle

MuggelPu

Download:
1440x2560 Themes Folder

Changelog:

"Klick mich!"

23.03.2015 (286X_v1)
corrected positioning and height of headerless lists (due to fixes in the theme engine)
corrected positioning of confirmation sliders (due to fixes in the theme engine)
added "disable size check" option to backup page
added support for monospace ttf in console
added support for entering a pattern to decrypt the data partition(only accessible if device is encrypted and the theme is integrated into the image)
added DST rules to time zones for USA and Europe
ownership of recovery images created during repacking is now set to media_rw:media_rw (should solve the problem of "undeletable" image files)
changed position of fab (sits closer to the navbar now)

12.02.2015 (285X_v1)
changed the script used to change the splash screen to work with new recovery file structure
added "cancel backup" button
during backups, the file progress is now shown on the appbar (next to the partition that is currently being backed up, as it's a partition specific value)

17.01.2015 (284X_v2)
fixed flashify script info screen
fixed back function for flash image page
Added some missing pngs

15.01.2015 (284X_v1)
added support for native image flashing
added option to use the "old" flashify script (instead of the native image flashing) to theme settings
added a warning dialog to the "include theme in repack" option
changed font on app bar from Roboto Regular to Medium
built-in theme changer now sets ownership of the ui.zip to media_rw:media_rw (should solve the problem of an "undeletable" ui.zip)
removed "back" functionality from arrow icon on "installing zip" page
removed "show full multirom version number" option from theme settings (MultiRom themes only: had to drop one option for another, but the info is still present on the "about" page)
added recovery / theme version info to the about page (tab on the TWRP logo on main menu...)
changed the highlight color on the message window from holo blue to some material green (Play themes only)
removed the degree sign from cpu temperature, as it's not being displayed correctly (1080 and 1440 still have it, as Nexus 5 and 6 do show it correctly)
1536 themes released, Nexus 9 is now officially part of the family...

10.01.2014 (2830_v3)
XML split into "ui.xml" and "version.xml" using "include" logic
revised script used for changing the accent color (should work on more devices now)
added option to integrate the theme into a recovery repack (on "change splash screen" page)
added an option to theme settings for using an alternative lock screen (with visible slider and larger lock icon)

Hen Ry

[size=14][THEME][N6] TWRP Materialised - Dark / Light / Play [17/01/16][/SIZE]

[size=14]17.01.2016 (287X_v2)

- added option to skip the root check (useful when using systemless root) - can be enabled in theme settings or on the install su page
- added tweak to aroma fm usage - to prevent problems with unsigned aroma fm zips, the zip verification now gets temporarily disabled
- added fix for navbar button behaviour on mount system read-only promt (thanks to @ketut.kumajaya)
- completely removed the "where do i have to swipe lockscreen" - former alternative lockscreen with visible slider is now the default
- fixed text placement for some checkboxes (problem on Nexus 5X and 6P only)
- fixed the console font - droid sans mono is used again instead of roboto regular

Download:
1440x2560 Themes Folder
1440x2560 Team Blackout Edition[/SIZE]

Collections of Splash Screens

"Installation"

...change the recovery splash screen
In order to change the splash, one must unpack the recovery image, replace the splash and then repack the image.
This can be done using the Android Image Kitchen by @osm0sis, which is available for Windows, Linux and Android (mobile AIK).
The Materialised theme provides a front end for using the mobile AIK.

General prerequisites:

Make sure the splash screen you want to use is in .jpg format and matches your screen resolution (e.g. 1920x1080).
Splash samples can be found along with the themes in the resolution specific download folders over here.
Download a stock TWRP recovery image for your device.
Samsung users have to download .img files or pull them from the .tar files. Repacking .tar files won't work.

Change the splash while in recovery:

Download the AIK-Mobile-Installer.
Flash the AIK zip in recovery.
This will install the required scripts and binaries to \data\local\AIK-mobile.
In Materialised settings, select CHANGE SPLASH.
Select the stock TWRP .img file.
Select the .jpg file you want to use as splash screen.
Set options:
- If Automatically install... is unchecked, the repack will only be created and saved to the same folder as the stock TWRP image.
  If checked, the repacked recovery will also be installed on your device.
- If Include current theme... is checked, the theme in its current state (accent color) will be included in the repack, replacing the stock TWRP ui.
  The ui.zip will automatically be deleted from /sdcard/TWRP/theme, as it is no longer required.
  Be aware that changing the accent color won't be possible with an integrated theme.
  In general, I'd recommend to not include the theme into the repack. By keeping the ui.zip, there's always the stock ui as a fallback option in case there's something wrong with the theme.
Start repacking/flashing with a swipe.
During the process, Repacking in progress... will be shown.

Change the splash on a Windows PC:

Download and unpack Android Image Kitchen Win32.
Copy the stock TWRP .img file to the Image Kitchen folder.
In windows explorer, drag & drop the recovery image on the "unpackimg.bat".
Unpacking will create two new folders (ramdisk and split_image).
Rename the splash of your choice to "curtain.jpg" and drop it into /ramdisk/twres/images.
Hit "repackimg.bat".
This will create a "image-new.img", which you can then flash away using your preferred method.

...install image files while in recovery:
The theme currently utilises the Flashify script by @osm0sis to install boot, radio and recovery images.
The script comes with the theme and will automatically be installed to /sdcard/TWRP/flashify if required.

On the Install page, tap on Install Zip.
Select Install Image.
Select the .img file you want to flash.
Select the image type.
This selection determines the target partition. Make sure not to flash a radio.img to the boot partition...
Start flashing with a swipe.

...use the AROMA File Manager:
AROMA File Manager is not part of the theme.
The theme just contains a "shortcut" for directly starting AROMA FM, rather than going through the "install > flash zip" procedure.

Download this flashable zip.
Flash the zip in recovery.
This will copy the Aroma FM package to \TWRP\aromafm.
In Materialised settings, tick the option to use Aroma FM.
From the main menu, the theme will now start Aroma FM instead of the TWRP file manager.

...resolve common issues
When I reboot to recovery, the theme isn't applied. Any ideas?
This is most likeley due to wrong naming of the theme folder or the ui.zip.
Make sure the folder is named "theme", without capital letters.
Also check if you accidentally renamed the downloaded zip to "ui.zip.zip" (common pitfall when renaming the zip in windows explorer).

When I reboot to recovery, I get a "recovery bootloop". Is my phone broken?
Nope, this is most likeley due to a bad download.
Please download the theme again using another browser or app.

fraz14

Ich missbrauche einfach mal den Thread von @MuggelPu
Könnte man vielleicht allgemein als TWRP Theme Thread nutzen.....

Also mir ist es eigentlich egal wie das Recovery aussieht, funktionieren muss es. Aber das Theme von Benzo (DarkMTRL Button Theme) gefällt mir richtig gut.
Gibt es auch als Flat Theme.

Installation

Die Zip in ui.zip umbenennen.
Einen Ordner "theme" in sdcard/TWRP erstellen und die zip dorthin kopieren.
Ready

Download

DarkMTRL Theme

Hen Ry

Das hat jetzt nicht direkt was mit dem Theme zu tun.

hier dieser String -> <string name="installing_zip_xml">Installiere ZIP: [COLOR=#ff0000]%tw_file%[/COLOR]</string>

Müsste da nicht die zu installierende Zip stehen, so wie ganz oben im Header, im Log steht: Installiere ZIP: %tw_file% und nicht z.B. Installiere ZIP: Rom.zip

Das ist auch im Englischen so.

fraz14

Von was redest du jetzt? Komm gerade nicht klar.......

Hen Ry

Wenn ich im TWRP eine Zip installiere kommt statt dem zu installierenden Dateiname: - >Installiere ZIP: %tw_file%.
Das ist jetzt nicht so tragisch, ist mir halt nur aufgefallen.

fraz14

TWRP Mint:D

dr-death

Zitat von fraz14

TWRP Mint:D

Sehr Geil. Kann ich Farbkombi-Wünsche aufgeben??

fraz14

Klar doch:D

fraz14

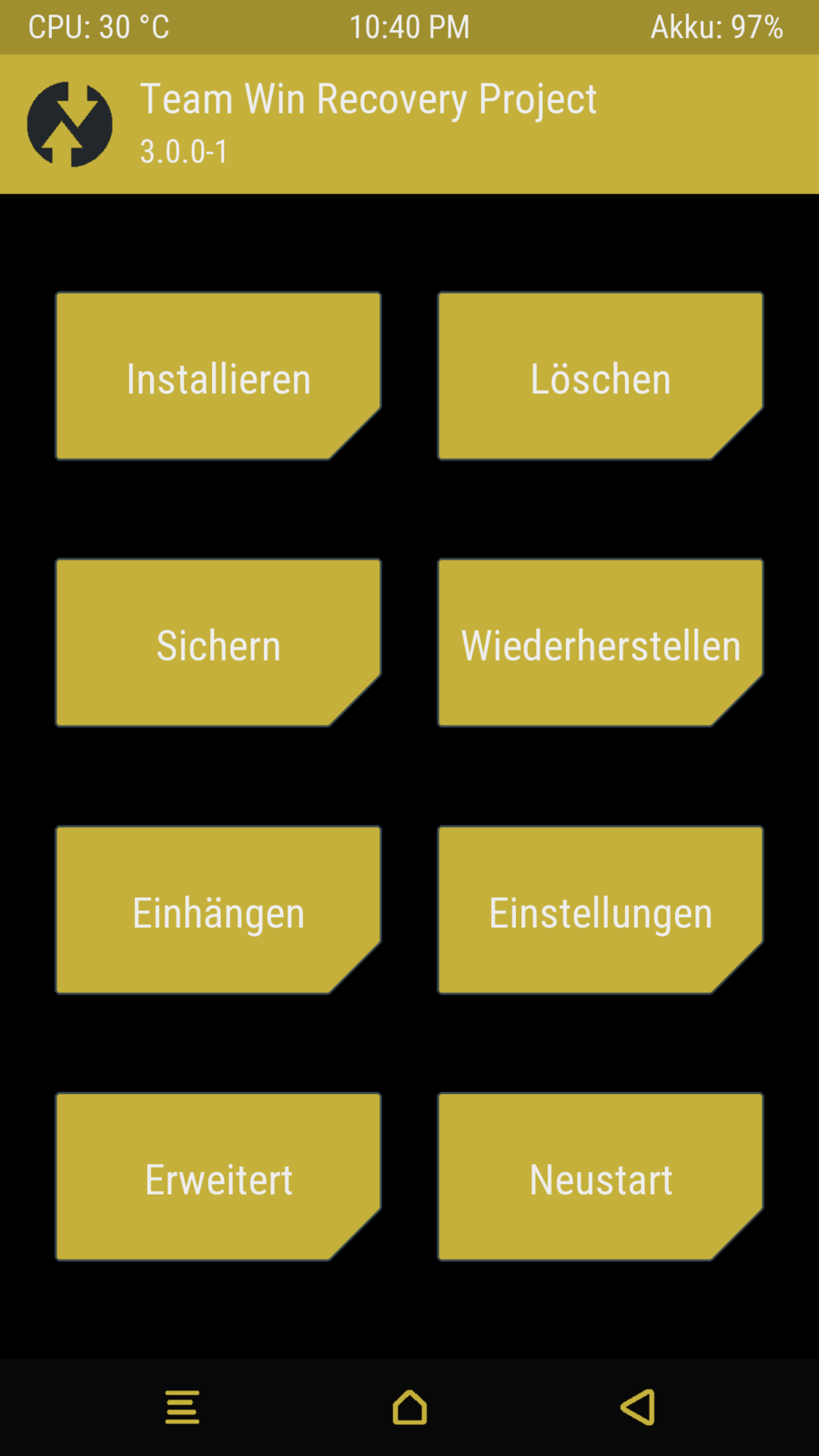

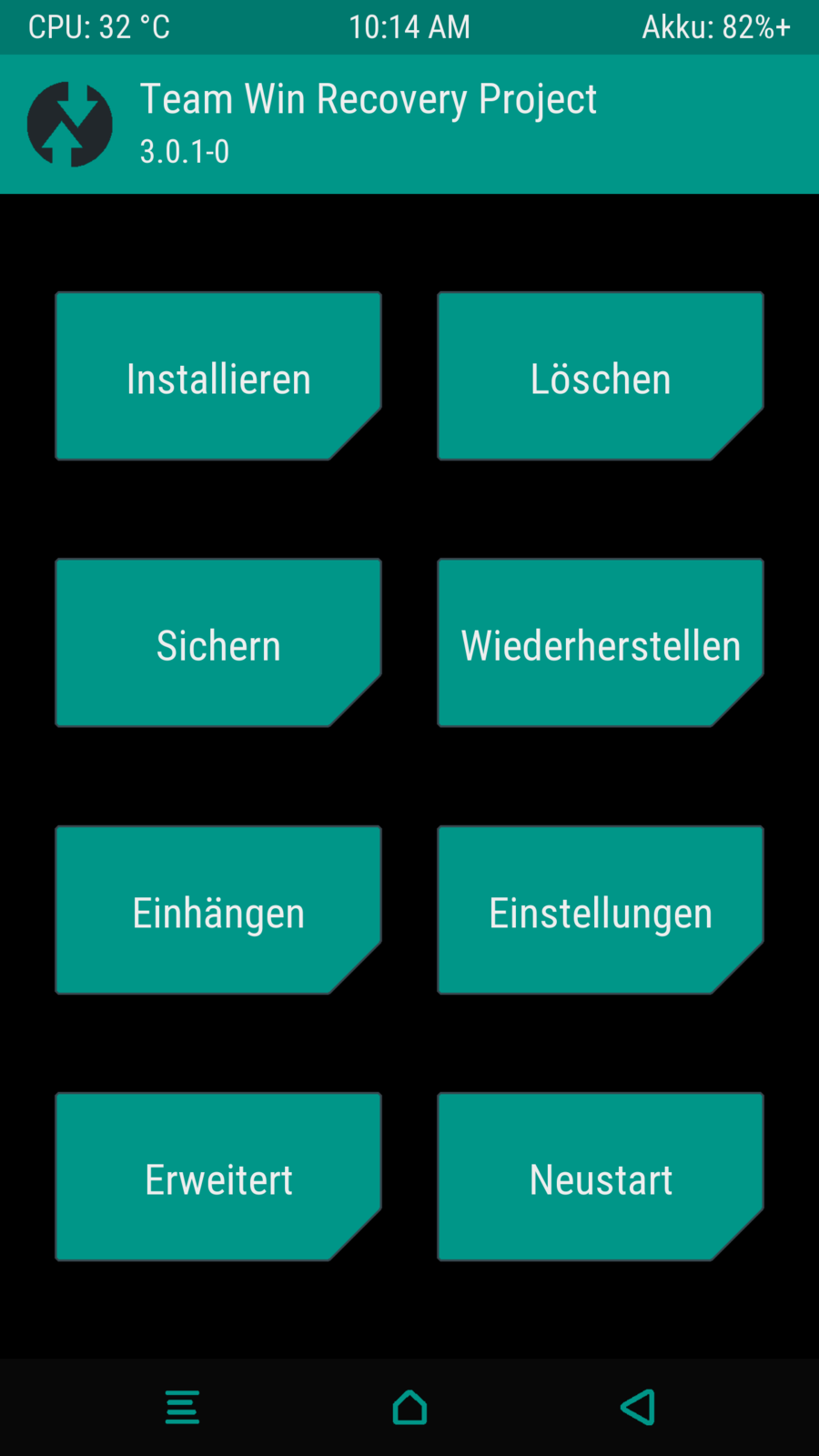

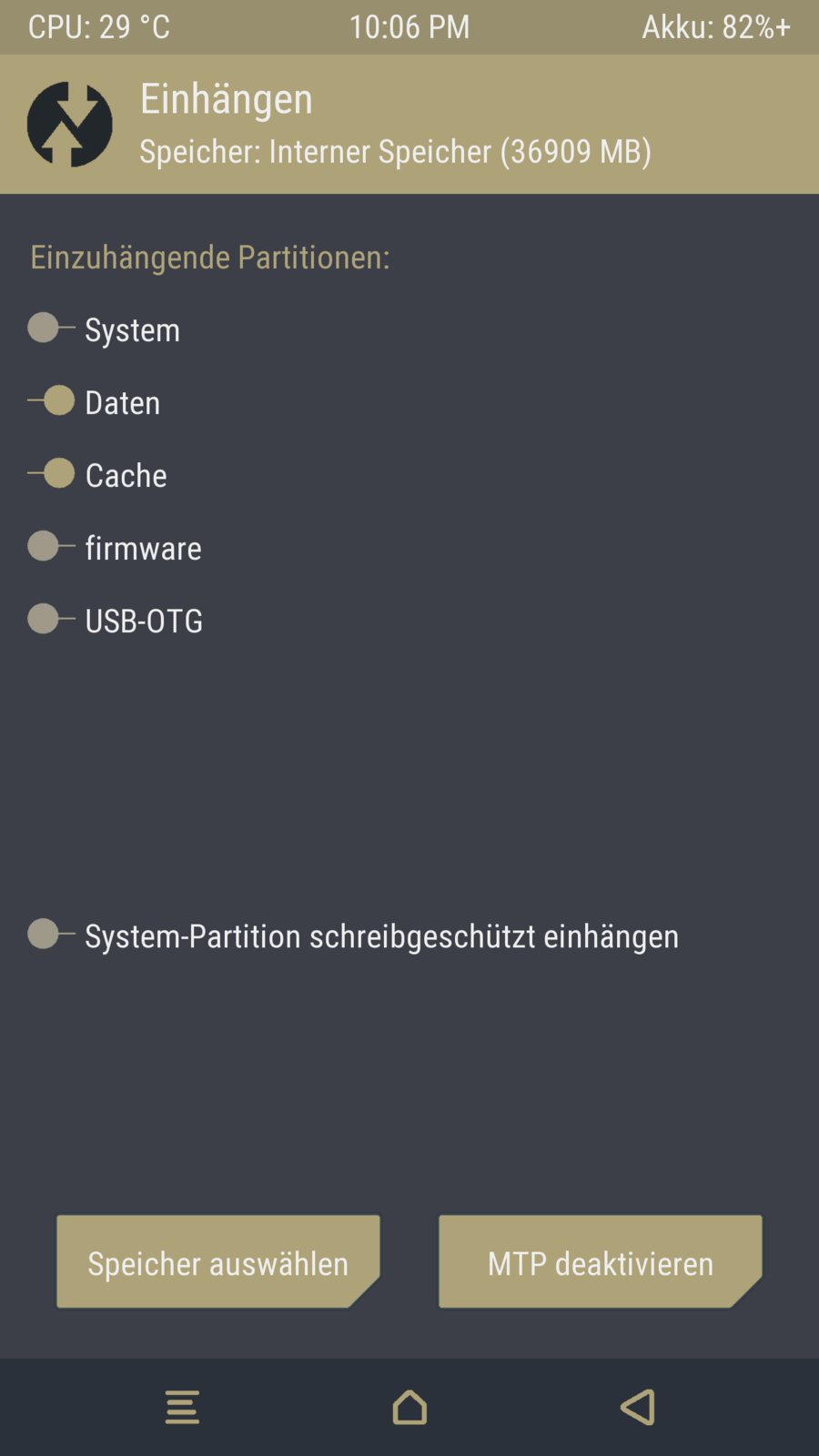

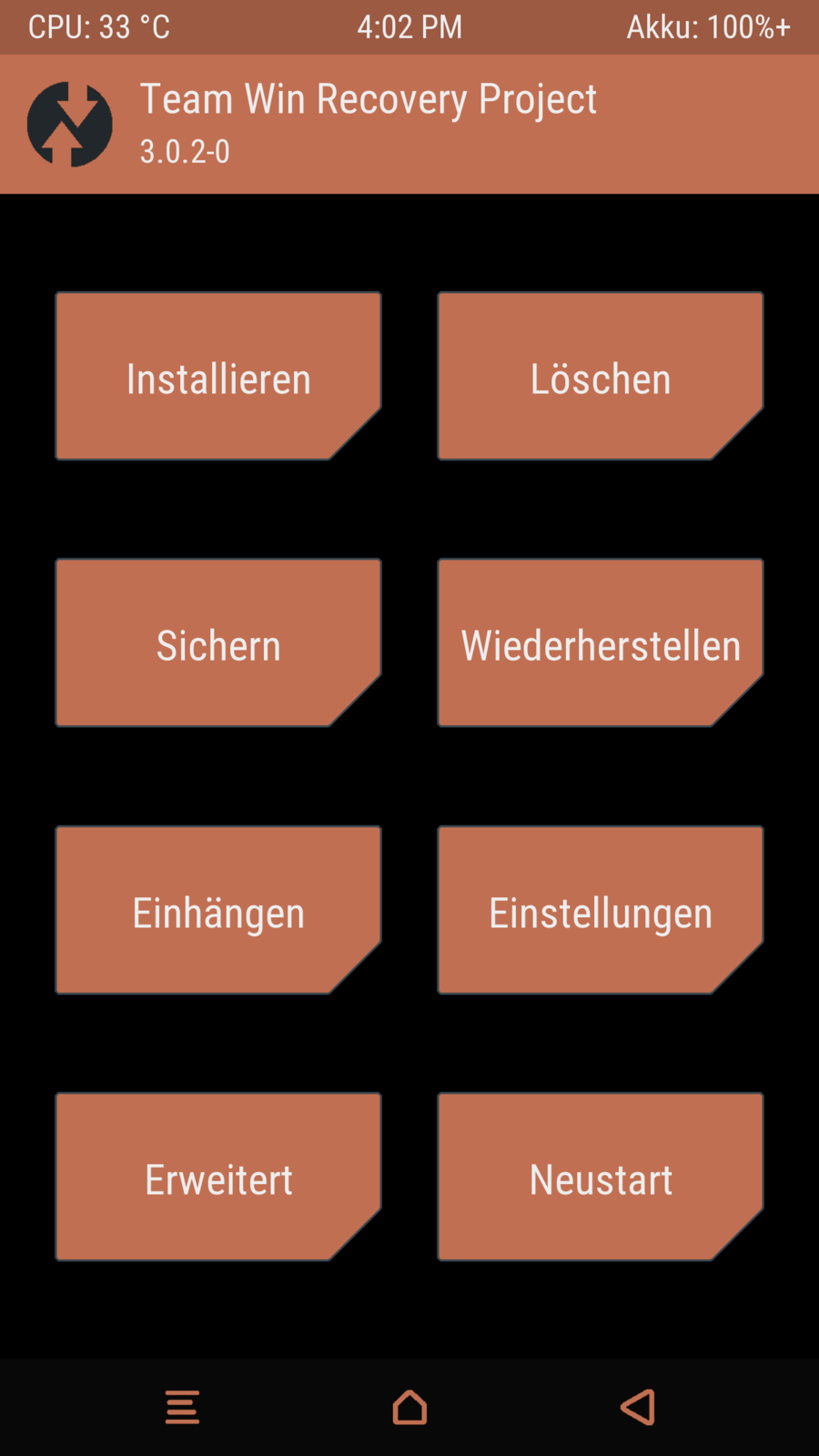

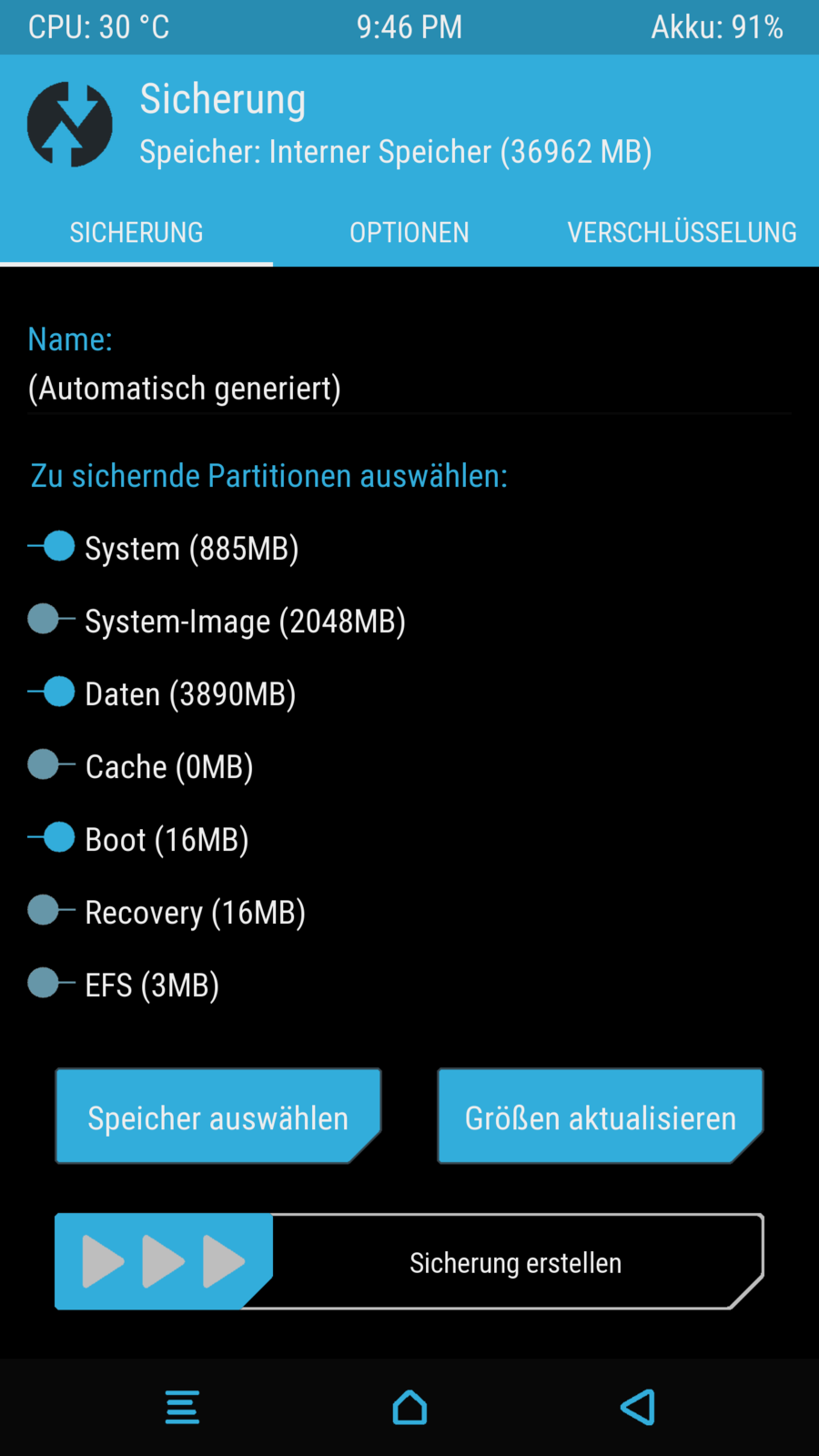

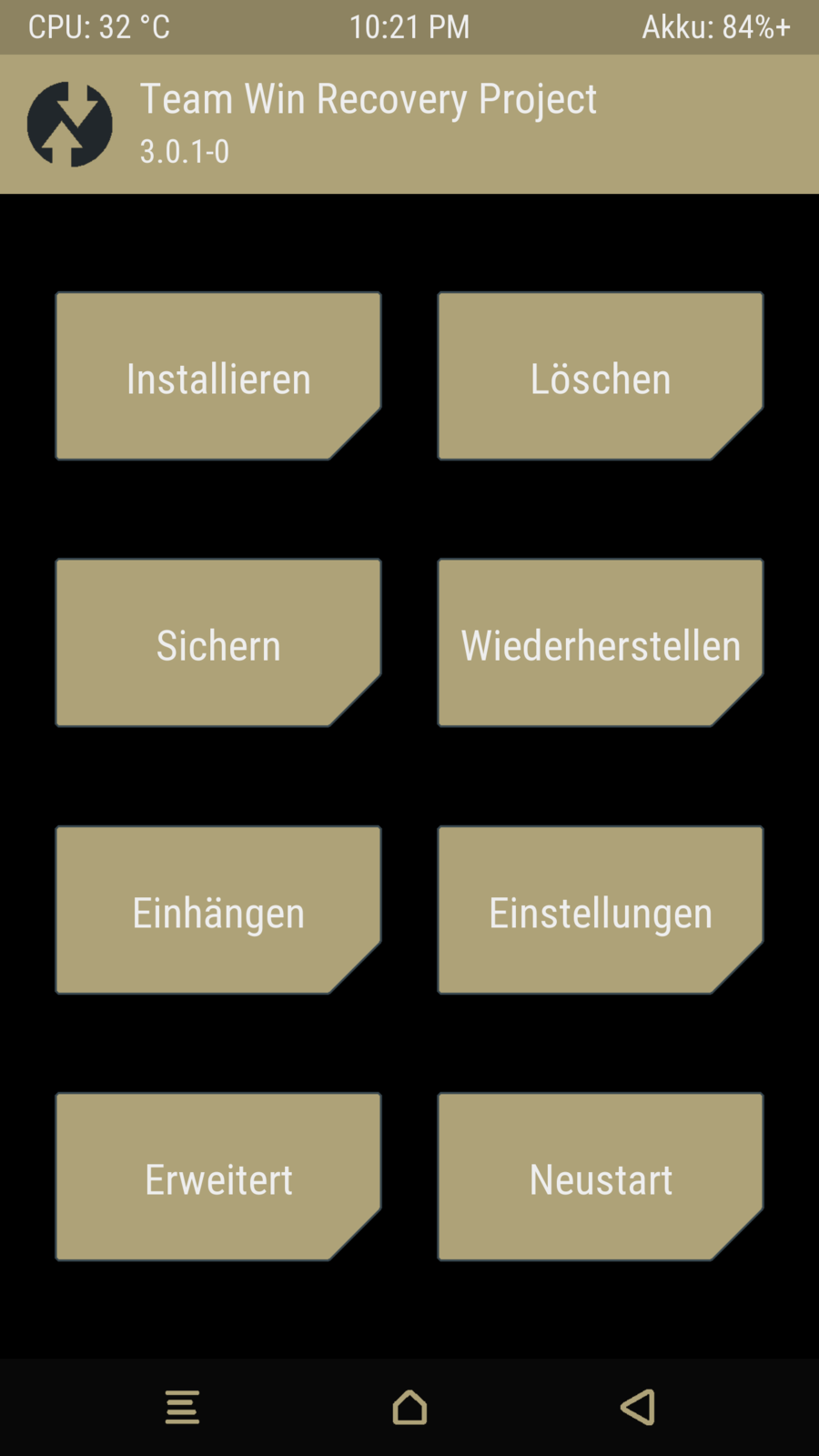

Ich hab ein paar TWRP Themes gemacht. Wer Lust hat kann sich bedienen, wer nicht lässt es sein:D

MINT

BlackRed

ShaleRed

TeslaTheme

TipsyTheme

BlackBeige

ShaleBeige

BlackBerry

ShaleBerry

ValidusTheme

Rum

ungültiger Link

Spevil

Sieht teilweise nice aus. Hat es schon jemand mit TWRP 3.0.1 getestet?

Gesendet von meinem Nexus 6

fraz14

Yup, funtzt. Sind noch neue Themen dabei.
Aktualisiert.
Die letzten Themen sind mit 3.0.1

dr-death

Zitat von fraz14

Yup, funtzt. Sind noch neue Themen dabei.
Aktualisiert.
Die letzten Themen sind mit 3.0.1

Danke! ShaleRed passt mir sehr gut

klimo

https://plus.google.com/10182941988612…sts/GhQfTTZ2sGU

fraz14

Hat jemand zufällig das DarkMTRL Button Theme? Meins ist weg und der Link ist tot.

pro.aggro

[Stable](2016.09.01)SuperSU v2.78 Release

Edit:
Okay, jetzt verstehe ich die Welt nicht mehr. Habe bei G+ geklickt und konnte den Download starten. Dann den Link hier gepostet und er wird als gesperrt angezeigt.
Naja siehe Anhang

fraz14

Danke!
